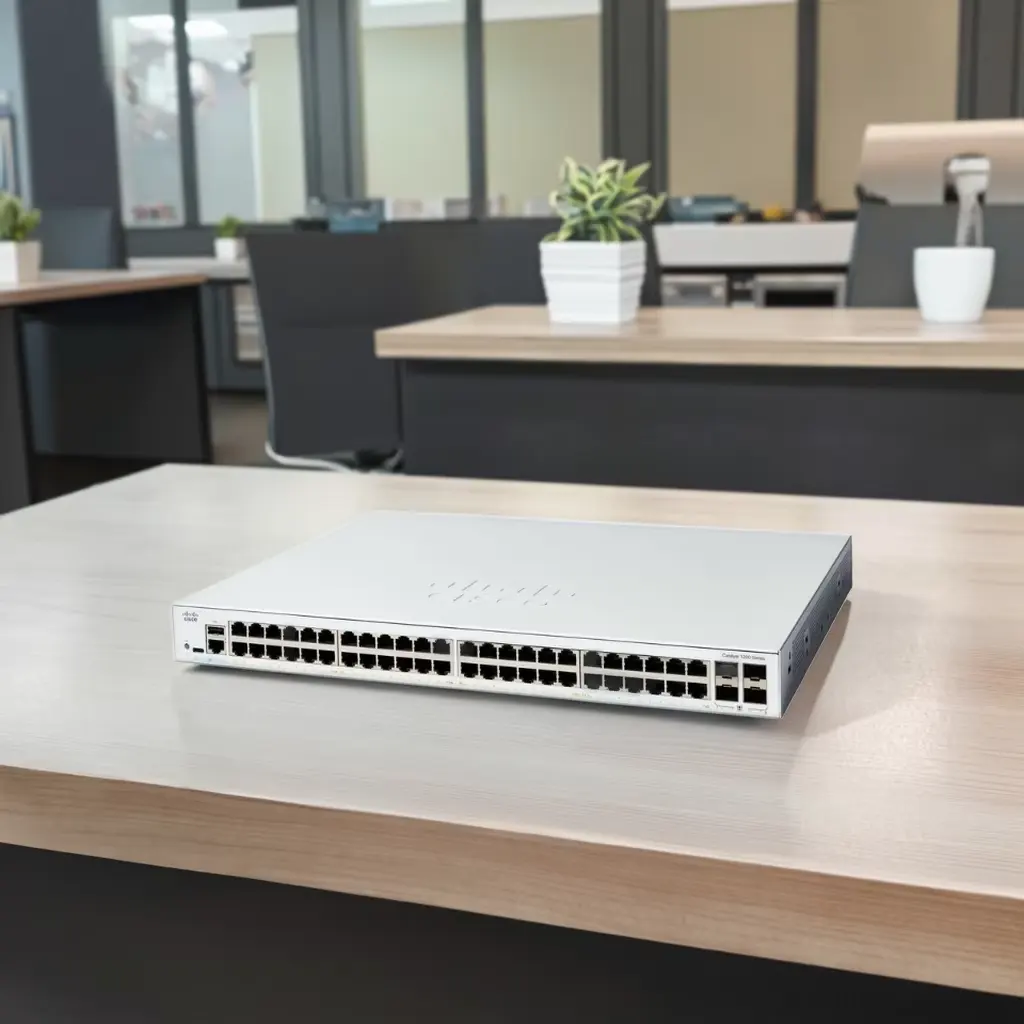

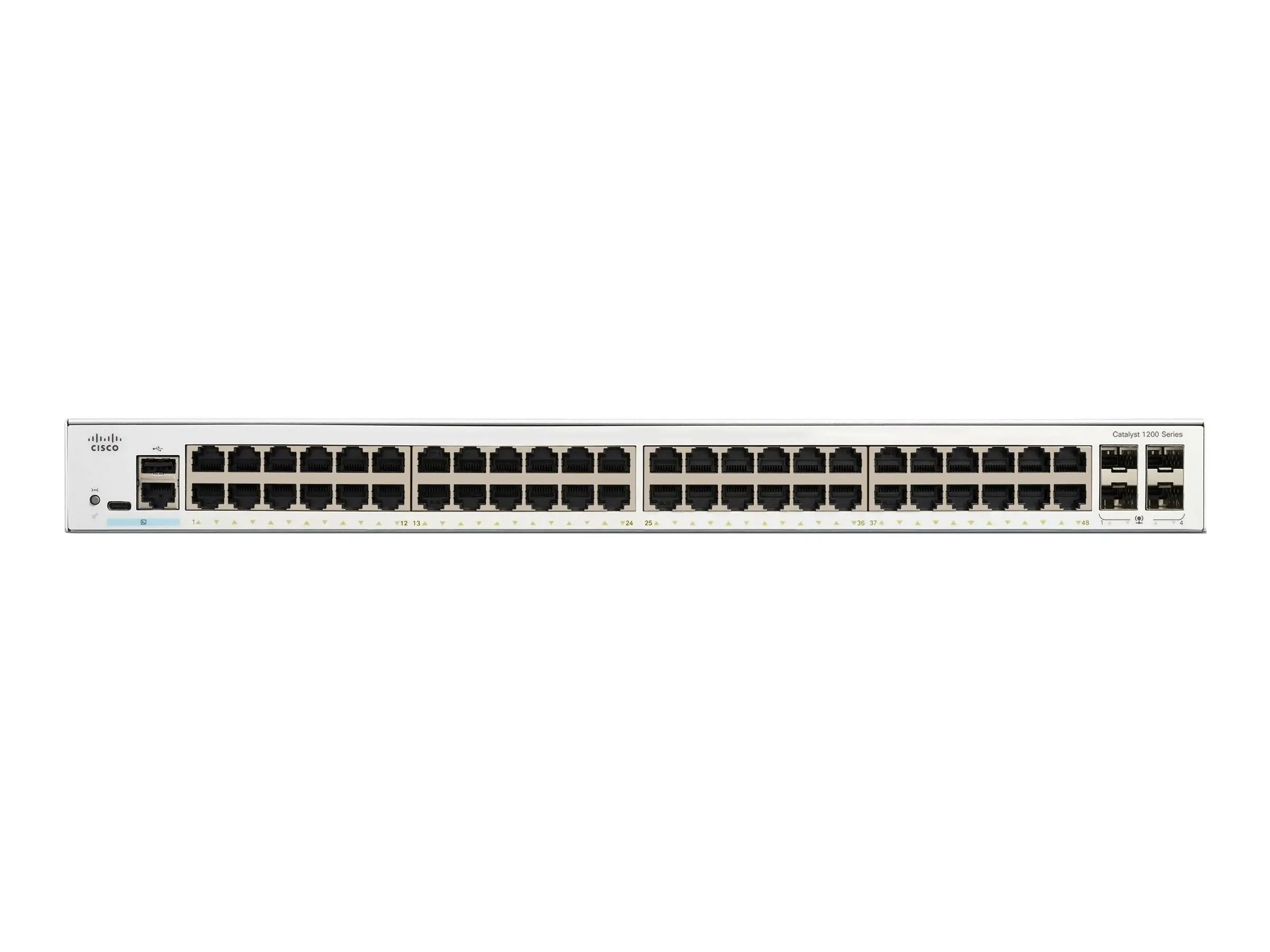

48T-4G Gigabit Ethernet Switch – 48 Ports with 4 SFP Uplinks

High-performance, managed Layer 3 Ethernet switch designed to meet the networking demands of growing businesses. With 48 Gigabit Ethernet ports and 4 Gigabit SFP uplink ports, it ensures robust and flexible connectivity for various network configurations. This switch supports advanced features such as VLANs, Quality of Service (QoS), and security protocols, making it suitable for both access and aggregation layers in enterprise networks.

Full Details:

• Device Type: Managed Layer 3 Gigabit Ethernet Switch
• Port Configuration:
  • 48 x 10/100/1000 Mbps RJ-45 ports
  • 4 x 1 Gbps SFP uplink ports
• Performance:
  • Switching Capacity: 104 Gbps
  • Forwarding Rate: 77.38 Mpps (64-byte packets)
• Memory:
  • Flash Memory: 512 MB
  • DRAM: 1 GB DDR4
• MAC Address Table: Supports up to 16,000 MAC addresses
• Layer 2 Features:
  • Spanning Tree Protocol (STP)
  • VLAN Support
  • Link Aggregation Control Protocol (LACP)
• Layer 3 Features:
  • Static Routing
  • Dynamic Routing Protocols
• Quality of Service (QoS): 8 hardware queues per port
• Security Features:
  • Access Control Lists (ACLs)
  • Port Security
  • Denial-of-Service (DoS) Prevention
• Management:
  • Web-based GUI
  • Command-Line Interface (CLI)
  • SNMP Support
• Standards Compliance:
  • IEEE 802.3 (10BASE-T Ethernet)
  • IEEE 802.3u (100BASE-TX Fast Ethernet)
  • IEEE 802.3ab (1000BASE-T Gigabit Ethernet)
  • IEEE 802.3z (Gigabit Ethernet)
  • IEEE 802.1Q (VLAN Tagging)
  • IEEE 802.1p (QoS/CoS)
• Physical Specifications:
  • Dimensions (W x D x H): 445 x 240 x 44 mm
  • Weight: Approximately 2.63 kg
• Power Consumption: 48.64 W (maximum)
• Operating Temperature: 0°C to 50°C
• Package Contents:
  • Catalyst 48T-4G Switch
  • Power Cord
  • Rack-Mount Kit
  • Quick Start Guide
